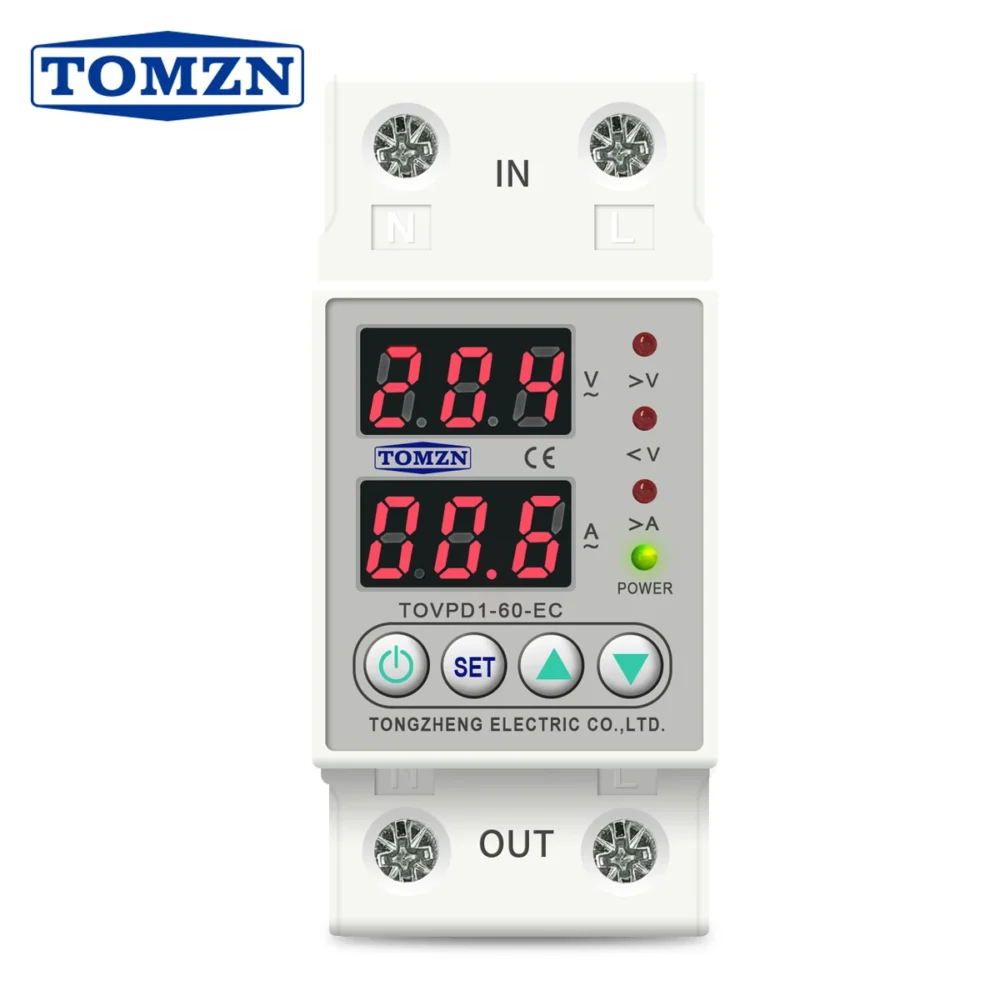

Over and Under Voltage and Current Protector – TOMZN
Model Number:Â TOVPD1-60-EC
Power Supply:Â 230VAC 50/60Hz
Power-on Delay Time:Â 1s-500s (default:10s)
Installation:Â 35mm DIN rail
Max Loading Power:Â 1-40AÂ Adjustable (default:40A)
1-63AÂ Adjustable (default:63A)

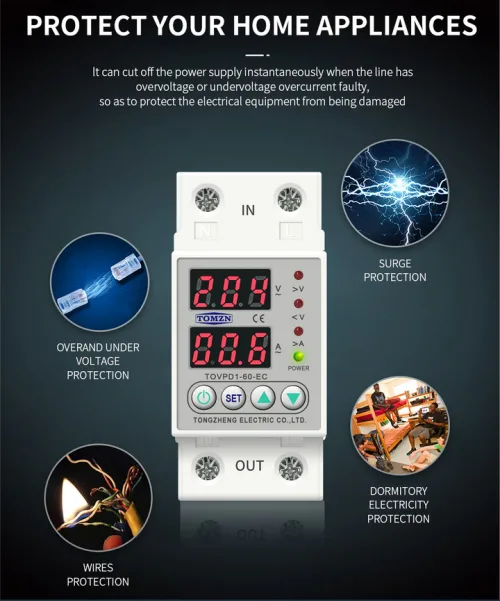

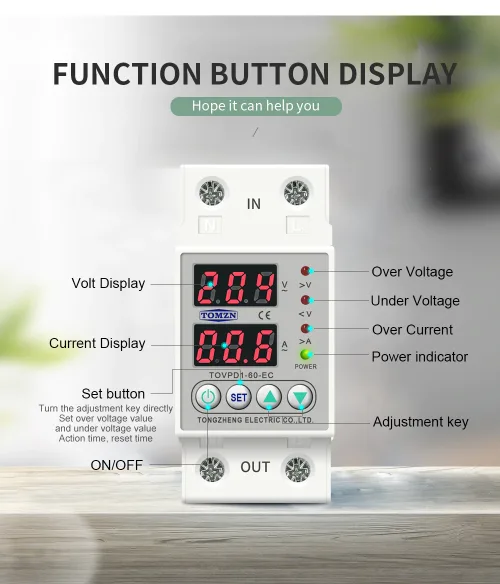

Features:
1. Over-voltage protection
2. Under-voltage protection
3. Over-current protection
4. Automatic recovery
5. Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration
Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V–295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
Under-voltage protection value range:140V–210V –OFF(default:170V)
Under-voltage recovery voltage range:145V–215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
Over-current adjustment range:1-40A (default:20A) 1-63AÂ (default:40A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current  recovery delay time:1s~500s(default:30s)
